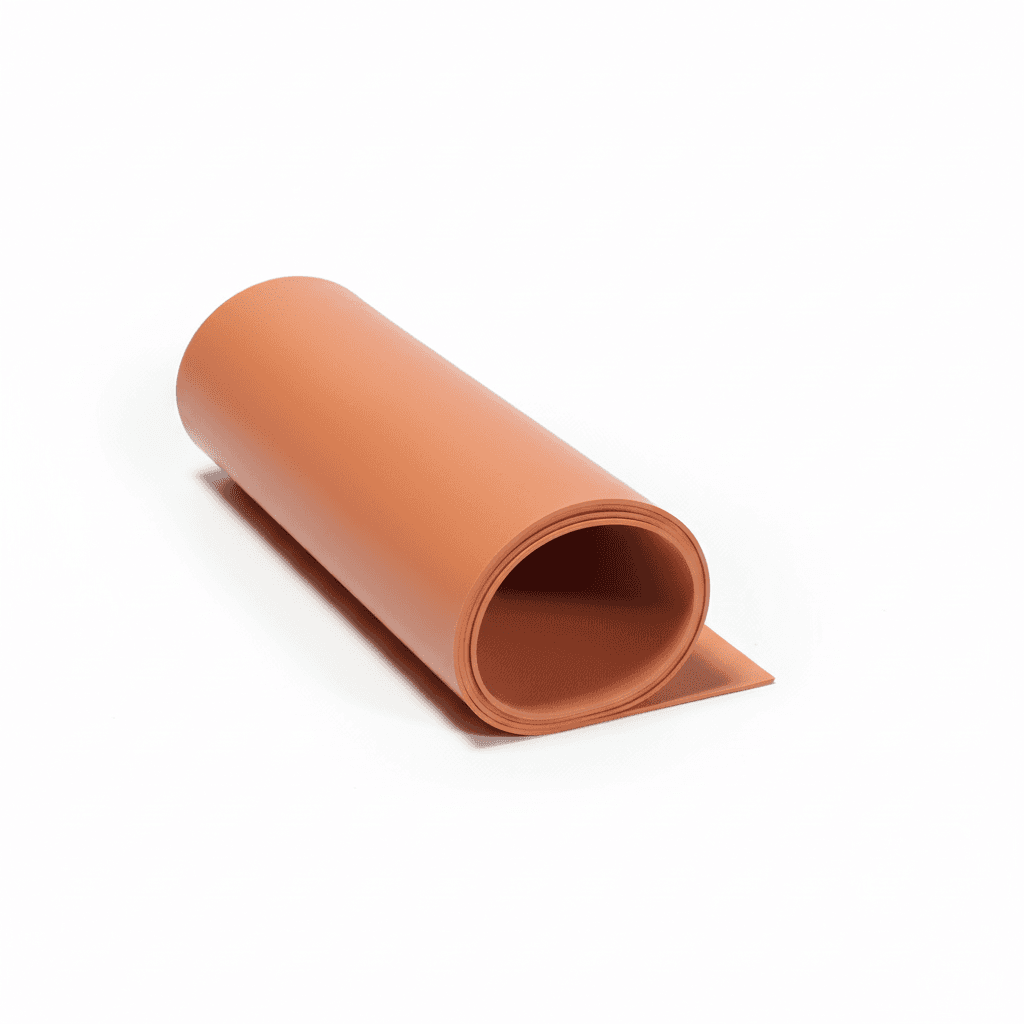

Feniks Isocarpet
Strong and abrasion resistant. One side smooth and a fine cloth impression on the other side. Electrically insulating according to the standard IEC CEI 61111.
Technical Specifications
All performance metrics at a glance.
Min Temperature
-40°C
Max Temperature
70°C
Hardness
60 Shore A
Specific Gravity
1.15 g/cm³
Tensile Strength
16 MPa
Elongation at Break
600%
Key Features
- Electrical machinery
- Plants
- Electrical facilities
Related Industries
Explore where Feniks Isocarpet delivers the most value.
Available Configurations
Select the combination that fits your application.
Thickness
1.6 mm
Insertion(s)
-
Insertion type
-
From
€29.61
Width
1 m
Length
10 m
Class
0
Colour
Orange
Proof test voltage
5 kV
Resistance
10 kV
Max use voltage
1 kV
Pricing shown is per square meter.
