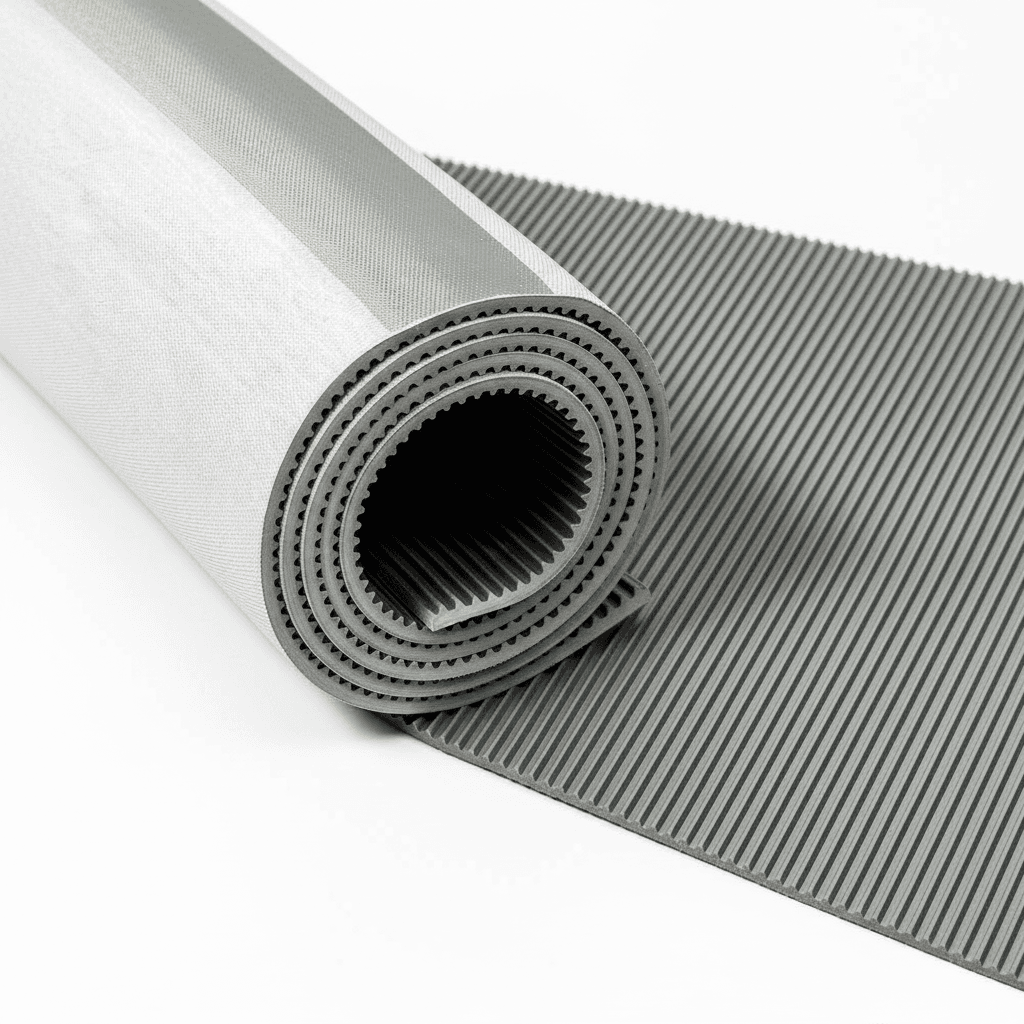

Feniks Insulation Fine Rib Mat
Strong and abrasion resistant. Fine ribbed design on one side and a fine cloth impression pattern on the other side. Electrically insulating according to the standard IEC CEI 61111.
Technical Specifications
All performance metrics at a glance.
Min Temperature
-25°C
Max Temperature
120°C
Hardness
70 Shore A
Specific Gravity
1.5 g/cm³
Tensile Strength
5 MPa
Elongation at Break
250%
Key Features
- Switchboard flooring to prevent against electrical shocks
Related Industries
Explore where Feniks Insulation Fine Rib Mat delivers the most value.
Available Configurations
Select the combination that fits your application.
Thickness
3 mm
Insertion(s)
-
Insertion type
-
From
€41.67
Width
1 m
Length
10 m
Class
2
Colour
Grey
Proof test voltage
20 kV
Resistance
30 kV
Max use voltage
17 kV
Pricing shown is per square meter.
